德式 T 型标尺
标准俄式坡度标尺
详细说明:

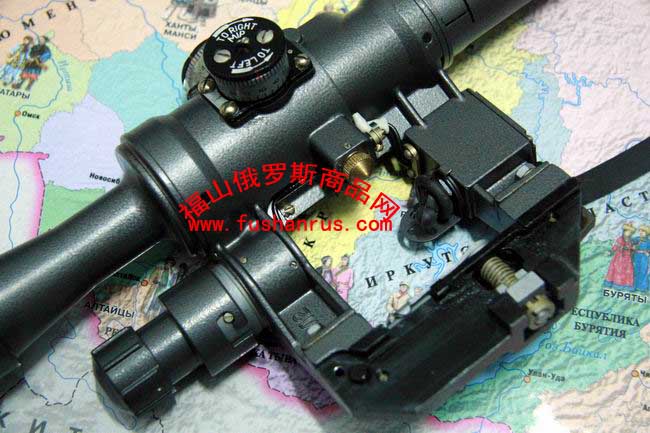

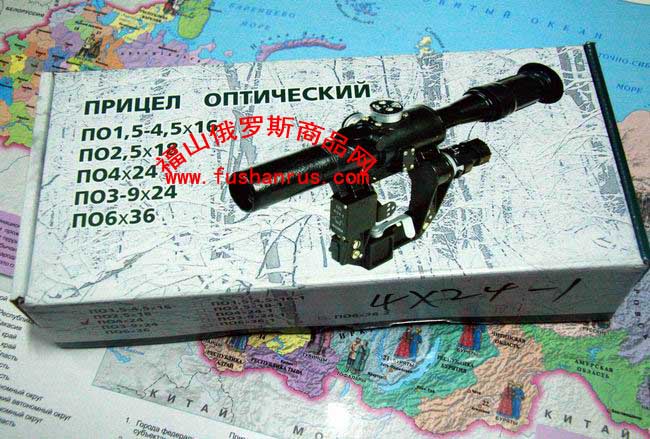

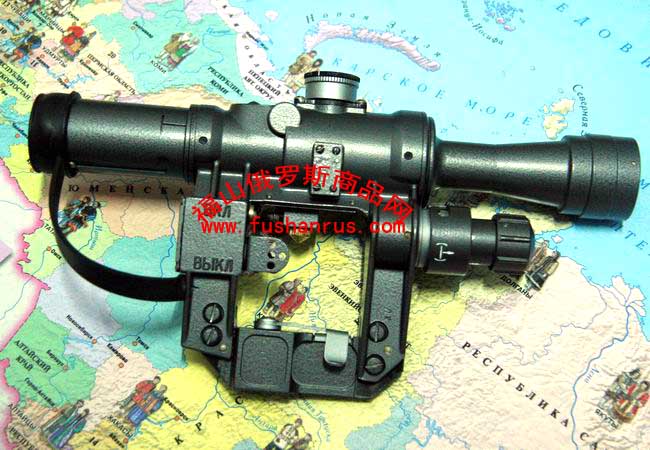

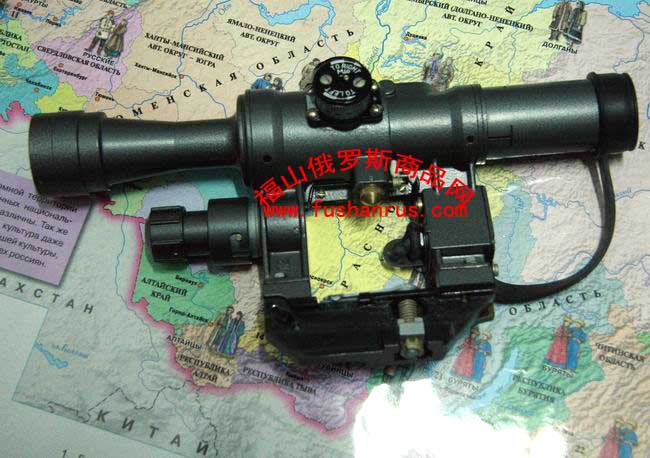

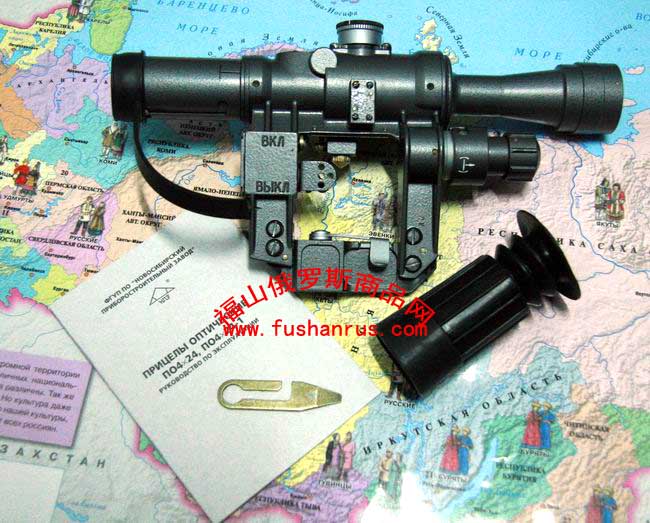

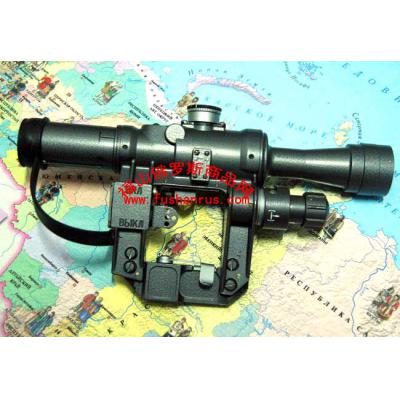

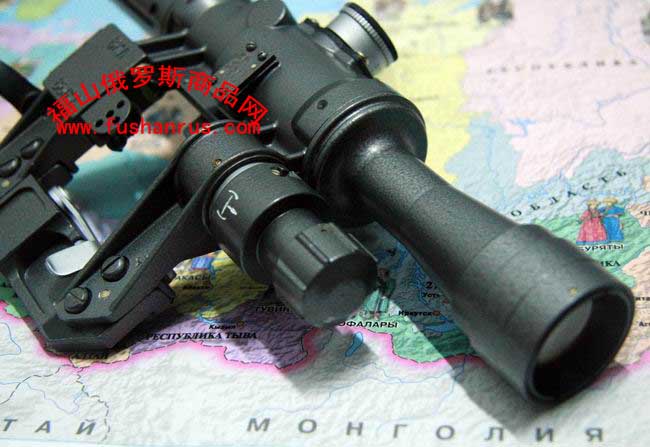

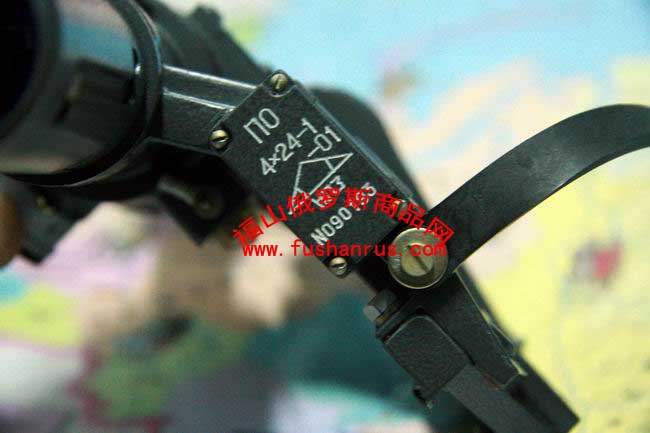

俄罗斯POS4x24瞄准镜
型 号 :4x24
放大倍率:4X 物镜
直 径:24mm 管径
直 径:25.4mm
光学镀膜: 蓝膜
镜体结构: 一体
主镜材料: 铝合金
弹道调节: 旋钮式
产品长度 :300mm
备注说明:
该品为军用品装备瞄准镜之一。具有防水性能 内充氮防水 耐冲击性 冲击力为90, 用于俄罗斯阻击步配备。经过多年实战检测具有卓越的表现。如今俄罗斯部队也在广泛应用,是俄军主要装备之一。
Magnification |
4x
|
Field of View |
6o
|
Field of View at 1000 m |
110 m
|
Objective Aperture |
24 mm
|
Eye Relief |
68 mm
|
Eye Relief Diameter |
6 mm
|
Nitrogen Purged |
Yes
|
Waterproof |
Yes
|
Reticle |
German Post
|
Rangefinding Capability |
Yes
|
Illuminated Reticle |
Red
|
Mount Type |
AK
|
Power Source |
1.5V (AA)
|
Operating Temperature |
+50 to -50oC
|
Overall Dimensions |
375x70x132 mm
|
Weight |
.6 kg
|
PSO 4x24 Illuminated Rifle Scope w/ German Post Reticle, AK Version Updated for 2006!! The PSO series manufactured in Russia by NPZ is world famous for its quality and is current military issue for the Red Army. The military reticle has an extremely effective and useful height-based rangefinder for dual use, with graduated scales for both standing and prone figure estimation. NPZ PSO scopes with illuminated reticles are top military quality, made from magnesium alloy and come with fully multicoated optics. Considered the higher end of military side mount scopes, the quality is a step up from other PSO-style scopes. A much more useful scope for true precision shooting. It was specially designed for the SVD as a precision scope for sniper activities. The PSO features a red illuminated reticle which allows you to make perfect kill shots in dusk conditions. Illumination is provided by a simple diode. We have red, blue, white, yellow and green diodes available for purchase which allow you to change the color of the reticle when illuminated. The special design of the scope allows for both lateral and angular adjustments quickly and easily so you always stay zeroed in. It features professionally ground, crystal clear optics, nitrogen filling to prevent lens fogging, and a backed enamel finish for scratch protection. It is waterproof and can be used in any climate condition. It comes with a high quality mil-spec dark gray/black hammer finish, and comes with everything shown in the picture including an attached, quick-deploy, extendable sunshade. If you want the look and performance of a true military scope and place a premium on shooting comfort, this is your best choice. It is powered by a standard AA battery. It can be easily mounted to any automatic weapon with an AK-style side rail

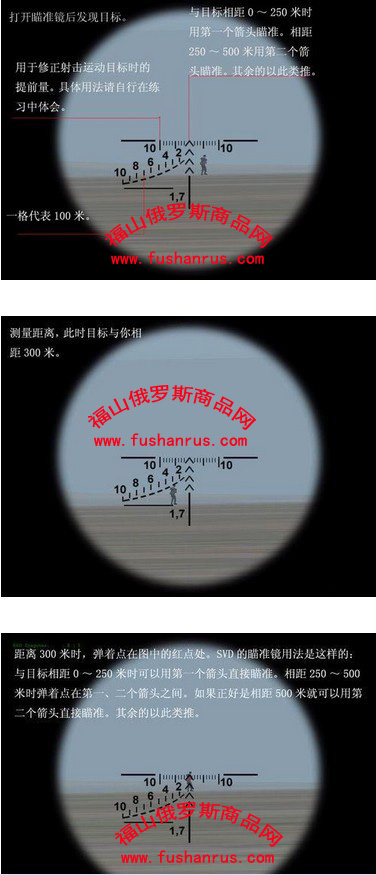

俄罗斯标尺使用方法介绍:

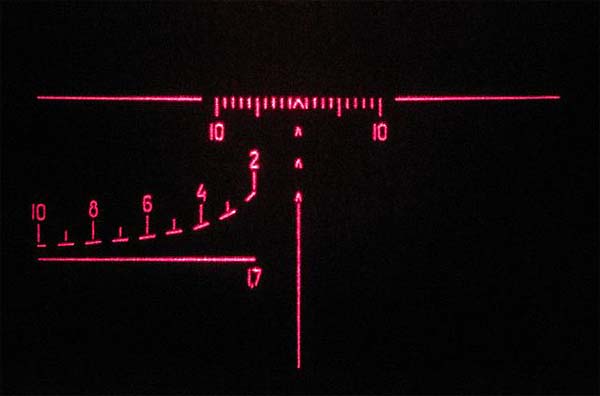

俄罗斯SVD狙击步上有两种不同的瞄准装置,一是弧形表尺与圆柱准星组成的机械瞄具,表尺分划从0到1200m每100m一个分划,瞄准基线长587mm。另一种瞄具,也是主瞄具,是放大4倍的PSO—l型瞄准镜,视场6度,物镜直径30mm,安装在机匣左侧。瞄准镜座的安装不影响射手在紧急情况下使用机械瞄具。PSO—l瞄准镜内部的分划板可用于测距。当射手捕捉到位于水平线和测距曲线之间1.7m高的目标时,他可以在测距曲线上部的一个分划上看到相应的目标距离。此时,射手只要调整距离调节手轮就可以将弹道修正到测定的距离上,从而达到非常高的命中概率。 距离调节手轮刻度从0到10, 对应射程为0~1000m, 每个刻度间隔100m. 在刻度4(400m)以后, 每个刻度中间还有一个定位, 分别对应450m, 550m, 650m,...950m. 在瞄具内部分划板上除主分划外,在铅垂方向下方还有3个分划,每100m一个分划。所以,用PSO—l瞄准镜瞄准,最大射程可达1300m。
分划板左右两侧各有10密位的刻度, 可以用于估算提前量. 风偏修正手轮的调节范围是左右各10密位, 每个刻度对应0.5密位.
PSO-1型瞄准镜中, 还安装有红外线感光屏, 通过照明开关上方的手柄控制, 白天可以收起感光屏(手柄水平位置), 让出瞄准光路; 夜间可以将感光屏接入光路中(手柄垂直位置), 可以发现敌人的主动红外光源, 例如红外探照灯. 但不能算作真正的夜视仪.
SVD在600米距离上的散布为395mm,相当于在600码距离散布为14.17英寸,而北约国家对狙击步枪的要求是15英寸。为了提高狙击步的精度,SVD还需要专门的特制药,由维克多·萨贝尔尼科夫(Victor Sabelnikov)带领着一组苏联工程师设计了一种钢芯结构的7N1专门狙击,钢壳,弹头重9.8g,发展药重3.1g,SVD使用射击精度明显比使用现有的普通枪弹要准确得多。
产品名称 : | POS4X24-1增强瞄镜 |
产品品牌 : | POSP系列 |
